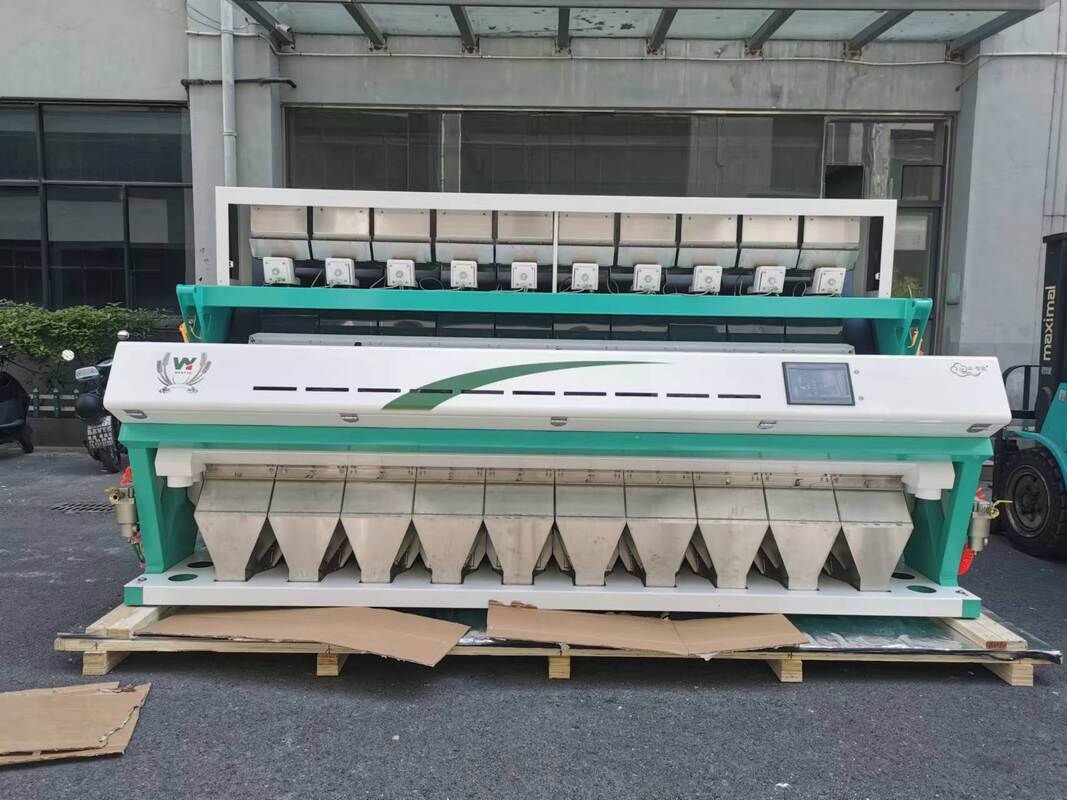

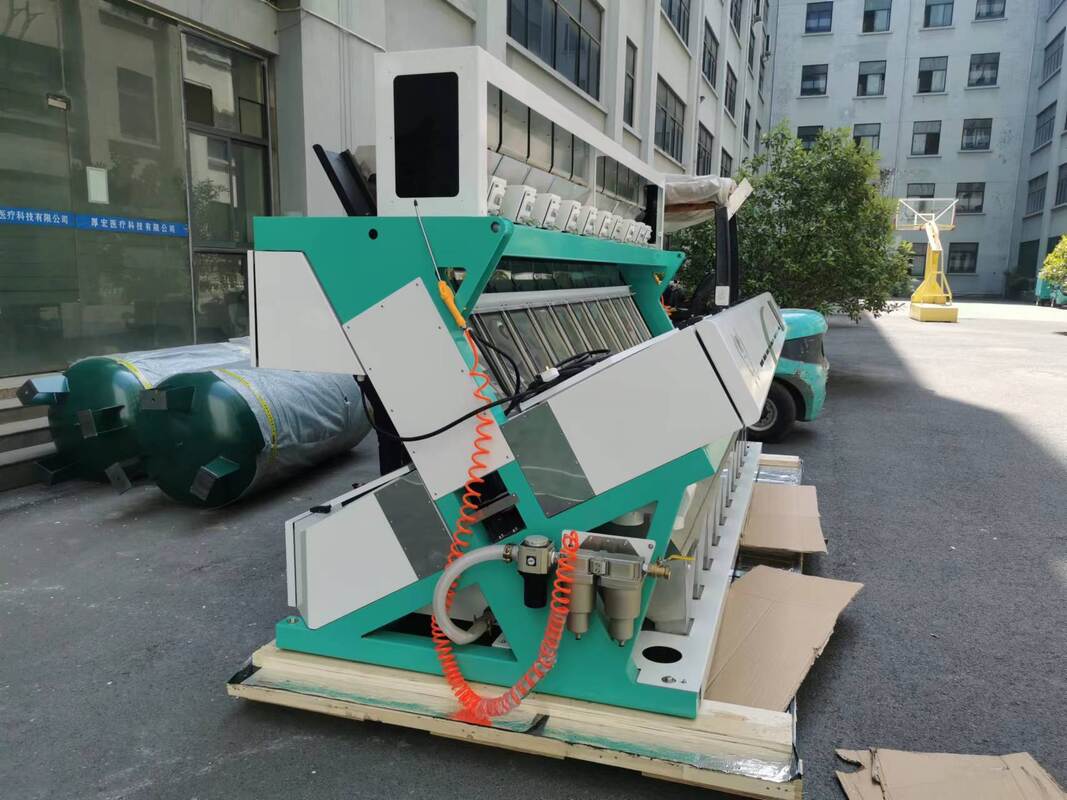

Wenyao High Accuracy CCD Color Sorter For Sunflower Seeds Seeds Color Sorting Machine
| Details as following |
| MODEL |
WYCS10-640 |
| Chutes(channels) |
10(640) |
| Sorting accuracy(%) |
≥99.9 |
| Carryover rate (bad:good) |
≥30:1 |
| Output(T/h) |
4-6 |
| Voltage |
180-240V/50Hz |
| Power supply(kw) |
6.5 |
| Work Air Pressure(Mpa) |
0.2-0.3 |
| Air consumption(L/min) |
2600-5000 |
| Air supply(Mpa) |
0.6--0.8 |
| Dimension(L*W*H) mm |
3630*1545*1860 |
| Weight(kgs) |
1800 |
| Package |
Plywood case |
| Package Size mm |
3764*1554*1871 |
Color sorter work principle:
Our advanced color sorting machine is specifically engineered for the sunflower seed processing industry. It uses high-definition cameras and high-speed air ejection systems to meticulously remove discolored, defective seeds, foreign material (FM), and other contaminants, ensuring a final product of superior uniformity and quality.
Key Features & Benefits
· High-Resolution Optical System: Equipped with high-pixel CCD cameras that capture minute color differences for unmatched sorting accuracy. Some models offer both color and infrared (InGaAs) sensors to detect internal defects and foreign materials invisible to the naked eye.
· Versatile Sorting Capabilities: Effectively removes a wide range of defects including:
· Moldy, rotten, or rancid seeds
· De-colored or partially peeled kernels
· Seeds damaged by insects or disease
· Foreign material (stones, glass, plastic, sticks)
· Gentle Handling: The design minimizes seed breakage during the sorting process, maximizing yield and preserving the integrity of the kernel.
· User-Friendly Interface: An intuitive touch-screen control panel allows for easy operation, recipe management, and real-time monitoring of the sorting process. Operators can quickly switch between different seed varieties and quality grades.
· Robust & Hygienic Design: Built with food-grade materials and a durable construction to withstand the rigors of 24/7 industrial operation. Easy-to-clean designs help prevent cross-contamination.
Examples of color sorting:
Feature :
-
Innovative Color Sorter Technologies
- Multispectral Recognition Technology: Captures visible and near-infrared spectra, identifying subtle color and texture differences invisible to the human eye, ensuring unparalleled sorting accuracy.
- High-Speed Solenoid Valve System: Ultra-fast response time under 2 million seconds, enabling precise removal of defective products at high processing speeds.
- AI Deep Learning Algorithm: Advanced image recognition that continuously learns and optimizes sorting performance, adapting to different materials and production environments.
- Modular Design Architecture: Easy maintenance and upgrades, extending equipment lifespan and reducing operational costs over time.

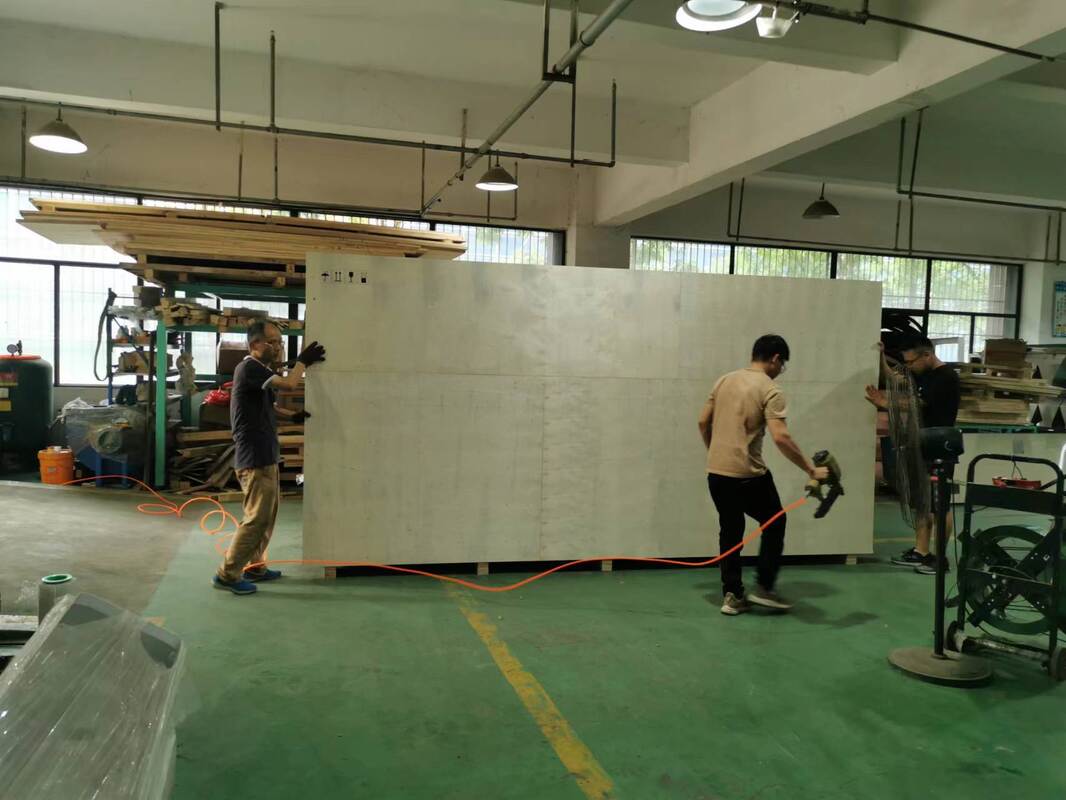

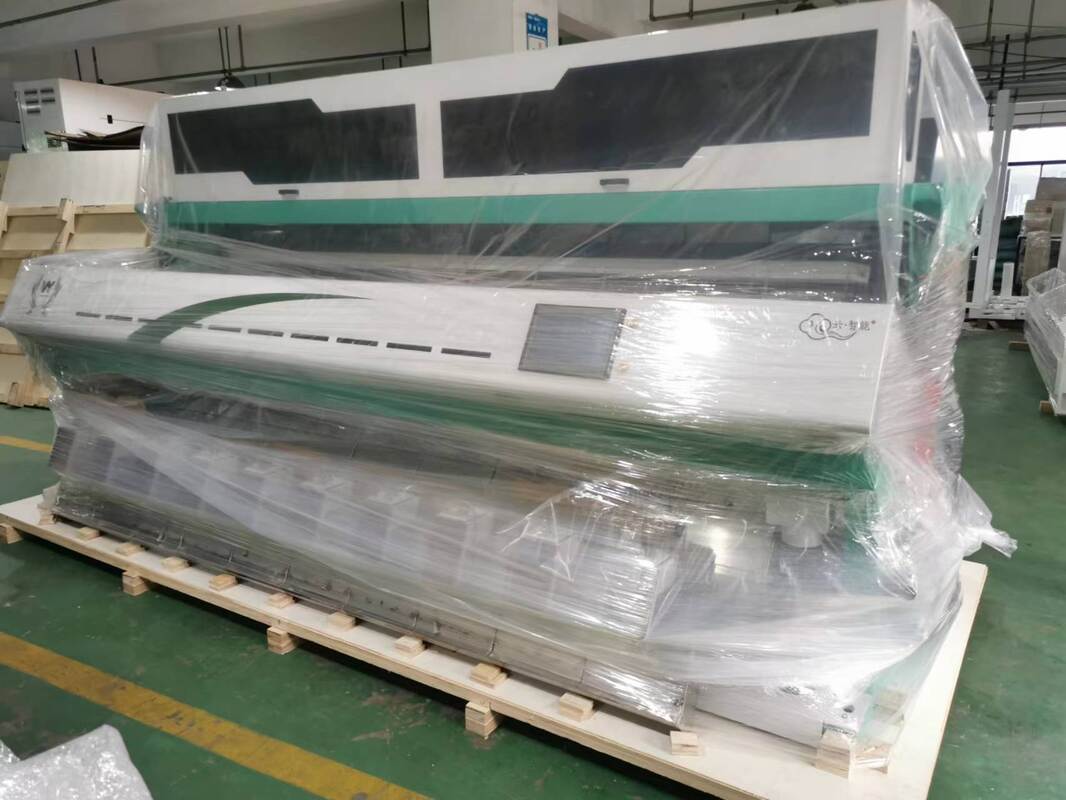

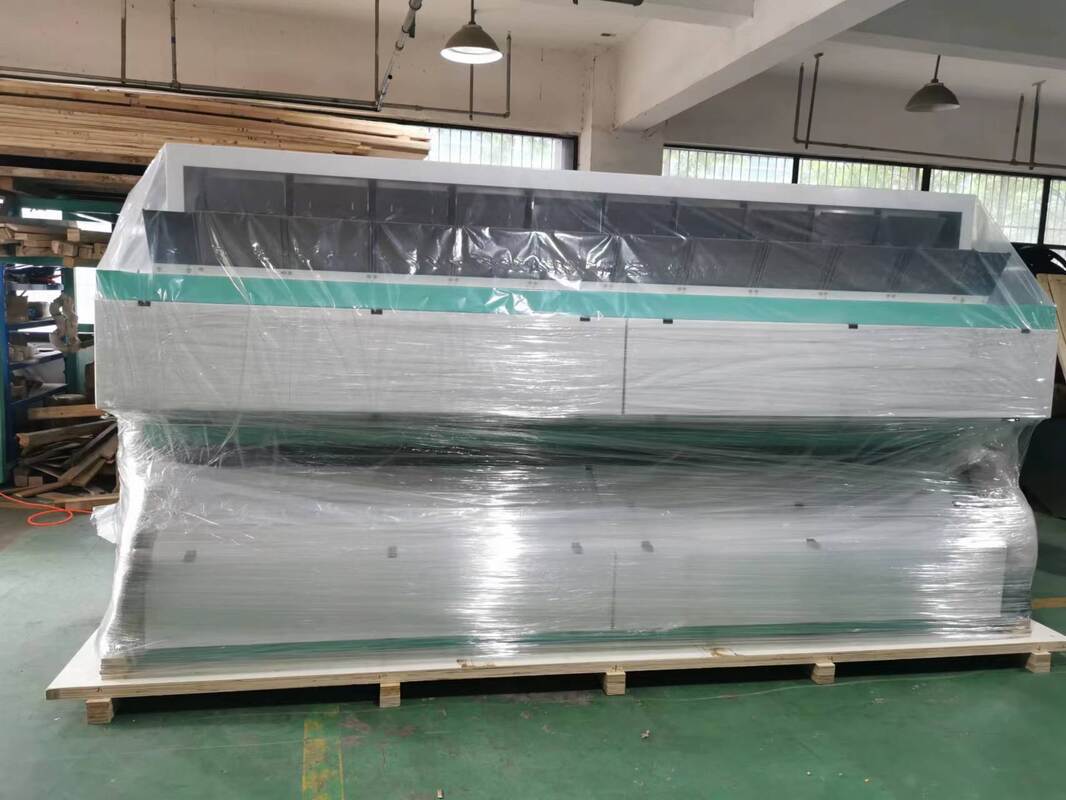

Package :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
Customer's Site :
Why choosing Wenyao
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
